GateLink All-In-One WiFi Gate Control Solution 4G/WiFi/BLE Triple Connectivity Cloud Backend Advertising Value-Added Service for Multi-Scenario

Name: GateLink AllInOne WiFi Gate Control Solution 4GWiFiBLE Triple Connectivity Cloud Backend Advertising ValueAdded Service for MultiScenario
Brand: JUTAI
Price: 1 USD

Quality GateLink All-In-One WiFi Gate Control Solution 4G/WiFi/BLE Triple Connectivity Cloud Backend Advertising Value-Added Service for Multi-Scenario for sale

Brand Name : JUTAI

Model Number : GL- WLAN

Certification : CE

Place of Origin : Shenzhen China

MOQ : Support 1-10 pcs for sample

Price : Negotiation

Payment Terms : T/T, Western Union, Wechat, Alipay, Paypal

Supply Ability : 5000 pcs per month

Delivery Time : 5-8 working dag

Packaging Details : Carton

Power input : DC 12-24V/1A (5V customizable)

Relay Output : 2/3-channel shared common terminal

Load : DC 30V/2A, AC 220V/1A

Interfaces : 1×CAN, 1×RS485, 2×RS232

Communicate : WIFI/4G + Buletooth

Operating temperature : -30~80°C

Contact Now

GateLink All-In-One WiFi Gate Control Solution 4G/WiFi/BLE Triple Connectivity Cloud Backend Advertising Value-Added Service for Multi-Scenario Industrial Access

The GateLink All-In-One WiFi Gate Control Solution delivers fully integrated intelligent management tailored for multi-scenario industrial access needs, combining streamlined hardware design with comprehensive smart functions to simplify industrial entrance regulation. Built to adapt to diverse factory, logistics and commercial industrial environments, this all-in-one system removes the trouble of fragmented device matching and complicated assembly work, bringing unified and efficient gate control to different industrial sites.

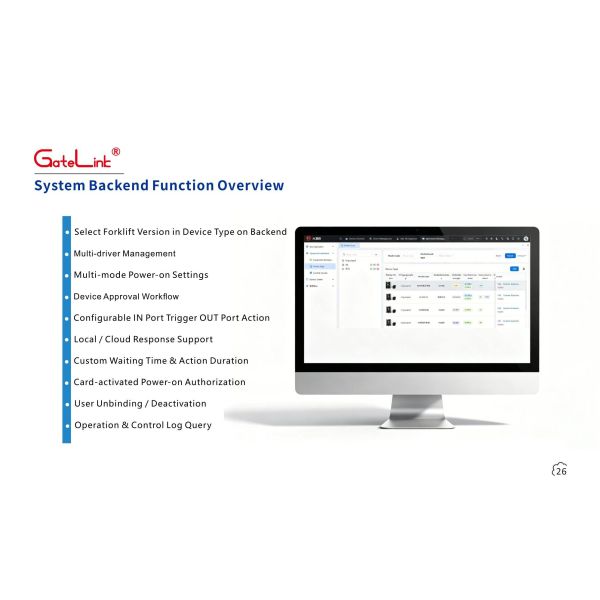

Supported by 4G, WiFi and BLE triple connectivity, the system maintains smooth and stable signal transmission in complex industrial spaces, avoiding network interruption and ensuring continuous access control operation at all times. A powerful cloud backend lays the foundation for centralized remote management, allowing administrators to monitor device status, adjust control settings and manage access permissions remotely from any location. This intelligent cloud architecture greatly simplifies daily operation and routine maintenance, and brings higher flexibility to overall industrial site scheduling.

Beyond core access control performance, this solution comes with exclusive advertising value-added services to create extra operational benefits for industrial facilities. It balances daily safety management and additional commercial potential, bringing more comprehensive returns for long-term operation. Designed with industrial durability and wide compatibility in mind, it fits various gate equipment and on-site layouts perfectly. By integrating flexible triple-network connection, cloud-based intelligent management and practical value-added functions, this all-in-one control system optimizes industrial access order, cuts daily management costs and creates dual value of safety control and income expansion for modern industrial applications.

GateLink All-In-One WiFi Gate Control Solution 4G/WiFi/BLE Triple Connectivity Cloud Backend Advertising Value-Added Service for Multi-Scenario


GL-WLAN-01	GL-WLAN-02	GL-WLAN-03

JUTAI GateLink Smart Controller & Camera Core Parameter Summary

General Controller Specifications (All Models)

All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.

Model-Specific Controller Parameters

GL-WLAN-01 (2-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Relay output: 2 channels with shared common terminal
Load rating: DC 30V/2A, AC 220V/1A
Dimensions: 109.5 × 41.1 × 25.6 mm

GL-WLAN-02 (4-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Expansion port: 1 × RS485
Relay output: 3 shared common channels + 1 independent channel
Load rating: DC 30V/1A, AC 125V/1A
Dimensions: 96.5 × 50 × 31.4 mm

GL-WLAN-03 (4-Relay 4G Controller)

Power input: DC 12-48V (max peak voltage 60V)
Communication: 4G + WiFi + BLE triple-mode
Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232
Input: 4-channel isolated digital input
Relay output: 4-channel independent NO/NC output
Load rating: DC 30V/10A, AC 220V/10A (high-power support)
Dimensions: 135 × 80 × 40 mm

Camera Pixel Parameters

GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)

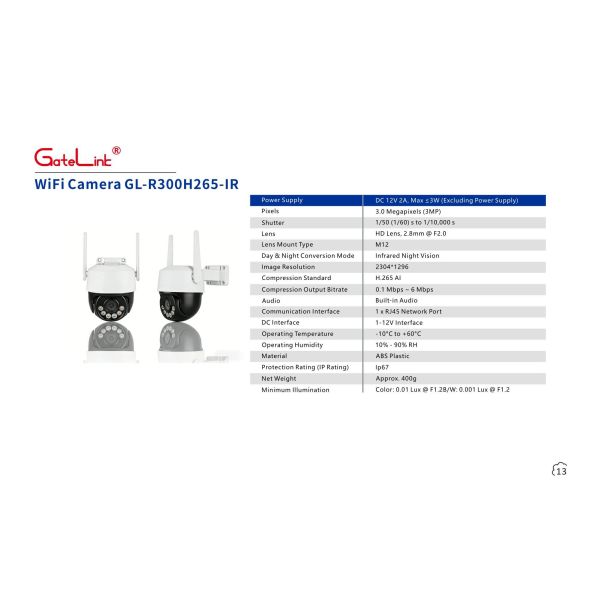

GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)

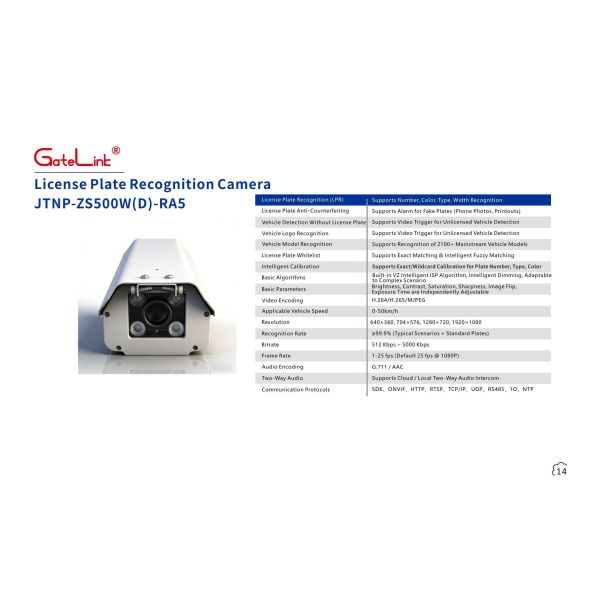

JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution

GateLink All-In-One WiFi Gate Control Solution 4G/WiFi/BLE Triple Connectivity Cloud Backend Advertising Value-Added Service for Multi-Scenario
